TorSentinel Monitor — Gluetun + Transmission (Docker) Setup & Test

1) Docker Compose (Gluetun + Transmission)

Transmission shares the Gluetun network namespace. Publish Web UI and ports on the gluetun service only.

services:
  gluetun:
    image: qmcgaw/gluetun
    container_name: gluetun
    cap_add: [NET_ADMIN]
    environment:
      - TZ=UTC
      # Choose ONE stack (WireGuard shown):
      - VPN_SERVICE_PROVIDER=custom
      - VPN_TYPE=wireguard
      - WIREGUARD_PRIVATE_KEY=<your_private_key>
      - WIREGUARD_ADDRESSES=<10.x.x.x/32>
      - SERVER_HOSTNAMES=<provider_servername>
      # Or OpenVPN: set OPENVPN_USER/OPENVPN_PASSWORD/OPENVPN_CONFIG
    volumes:
      - ./gluetun:/gluetun
    ports:
      - "9091:9091"          # Transmission Web UI (via gluetun)
      - "51413:51413"        # BitTorrent TCP
      - "51413:51413/udp"    # BitTorrent UDP
    restart: unless-stopped

  transmission:
    image: lscr.io/linuxserver/transmission:latest
    container_name: transmission
    network_mode: "service:gluetun"
    depends_on: [gluetun]
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=UTC
      - USER=<webui-user>
      - PASS=<webui-pass>
    volumes:
      - ./transmission/config:/config
      - ./transmission/downloads:/downloads
    restart: unless-stopped

Access Transmission Web UI at http://HOST:9091 (published on gluetun).

Gluetun + Transmission topology — All Transmission traffic exits via the Gluetun VPN tunnel.

2) Safelist your VPN egress

Safelist IP or CIDR — Safelist → Add IP or `/24` range.

Type:  IP or CIDR
Value: 198.51.100.42     # Your VPN egress IP
   or 198.51.100.0/24    # Range if provider rotates
Label: Transmission VPN

Egress rotates? Prefer a /24 covering your provider pool to keep announces marked Covered.

3) Transmission checks

1

Open Web UI → Preferences → Network.

2

Keep the default listening port; Gluetun publishes 51413 TCP/UDP.

3

With VPN egress, you may keep DHT / PEX / μTP enabled unless a tracker requires otherwise.

4

Confirm your Safelist entry matches the current VPN egress IP (or your CIDR range).

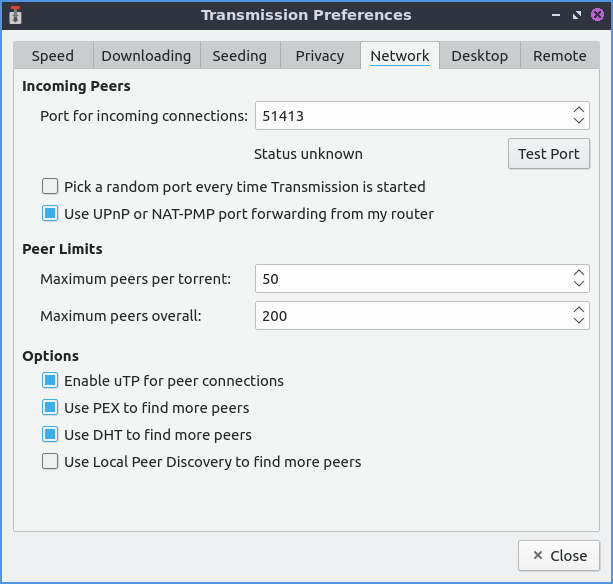

Transmission network settings — Network page highlights for port & connectivity.

4) Start the Test Torrent

Open Services → Torrents → Test Torrent, copy the magnet into Transmission, then wait ~1–3 minutes for an announce.

Ensure the torrent is added and not paused.
Confirm dashboard shows a recent Last Seen and Monitoring state.

No content is downloaded. The test torrent is metadata-only and exists to validate announce routing.

5) Alerts

Email: add your address and confirm.
Telegram: click Connect Telegram, then tap Start in the bot.

FAQ & Troubleshooting

Does Transmission support SOCKS5?

No. Transmission does not include a native SOCKS5 proxy. This Monitor guide covers VPN egress via Gluetun only.

Web UI not reachable on 9091?

Ensure 9091:9091 is published on the gluetun service, and that transmission uses network_mode: "service:gluetun".

Egress IP changed & now shows Uncovered

Update your Safelist IP or use a /24 CIDR that includes the new egress.
